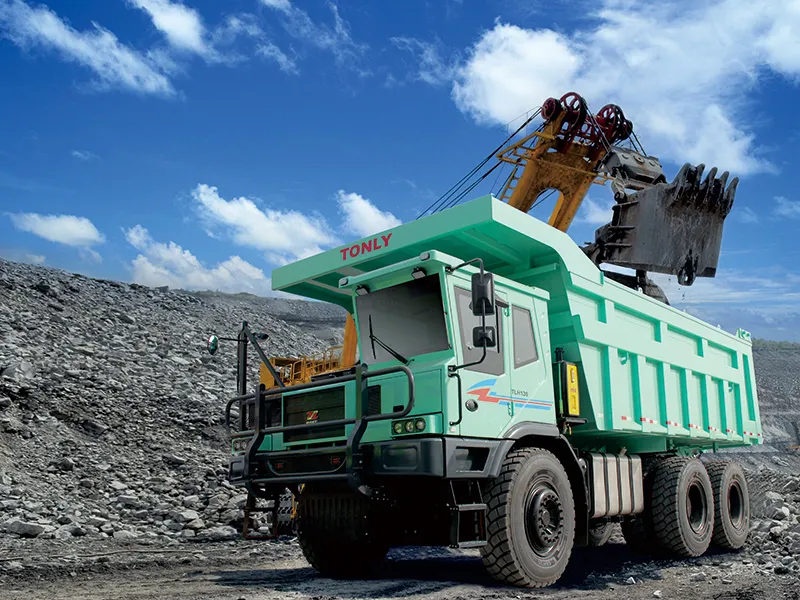

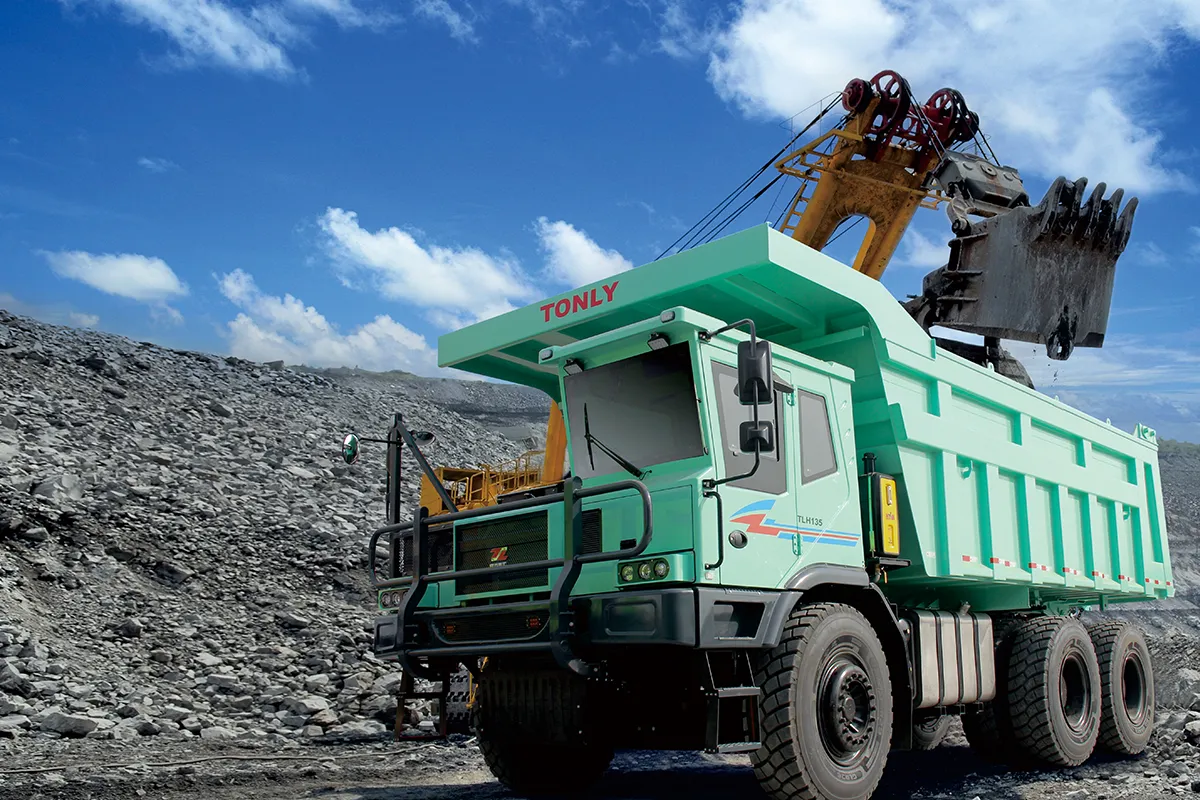

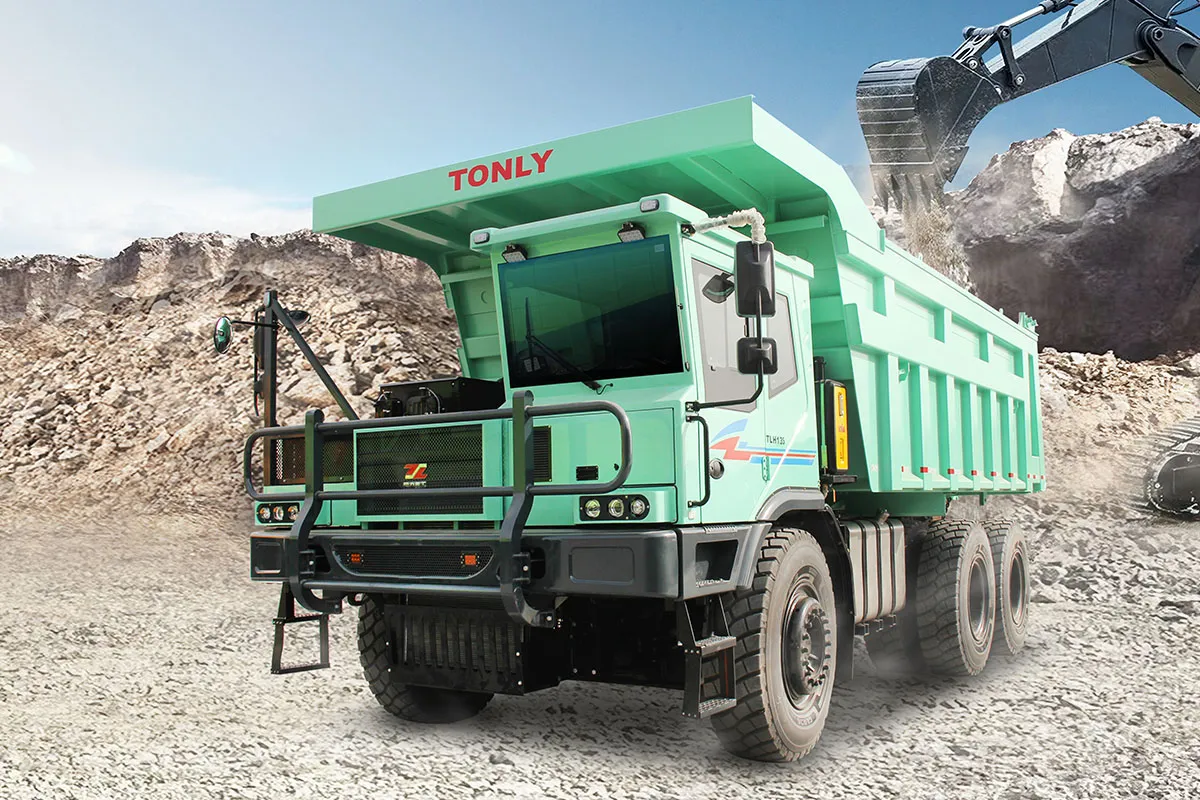

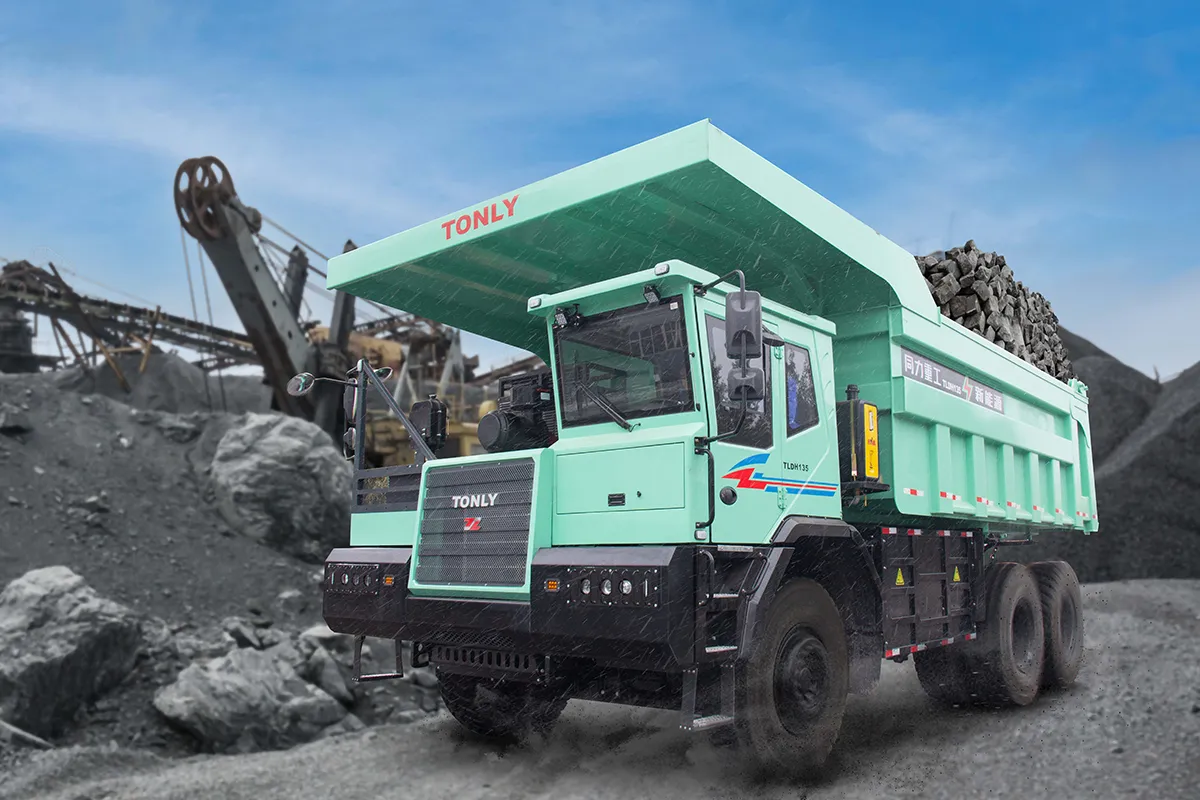

70-90 Ton Hybrid Electric Off-Road Dump Truck

70-90 Ton

Hybrid Electric Off-Road Dump Truck

Rigid haul truck with 4WD hybrid drive

Key Parameters

Engine power 353-560HP
Rated payload 70-90t
Drive power 450-800kW
Dump body capacity 33-50m³

Applications

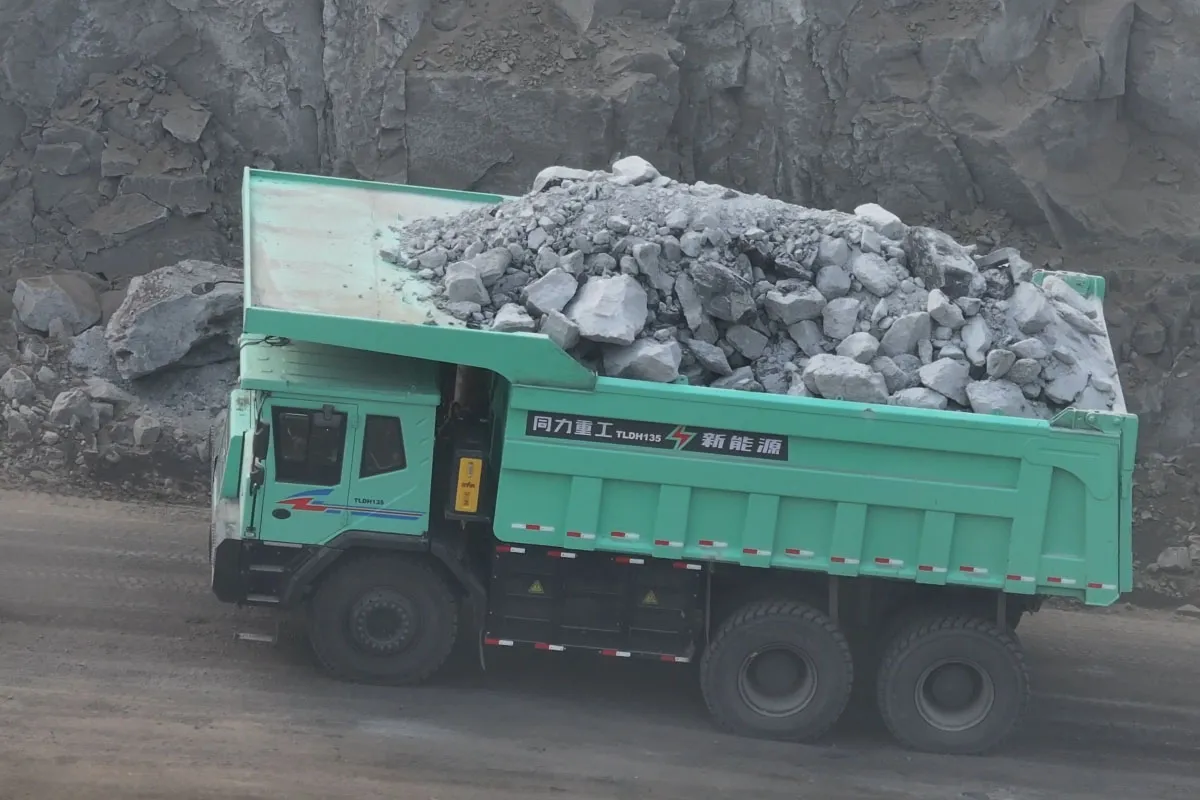

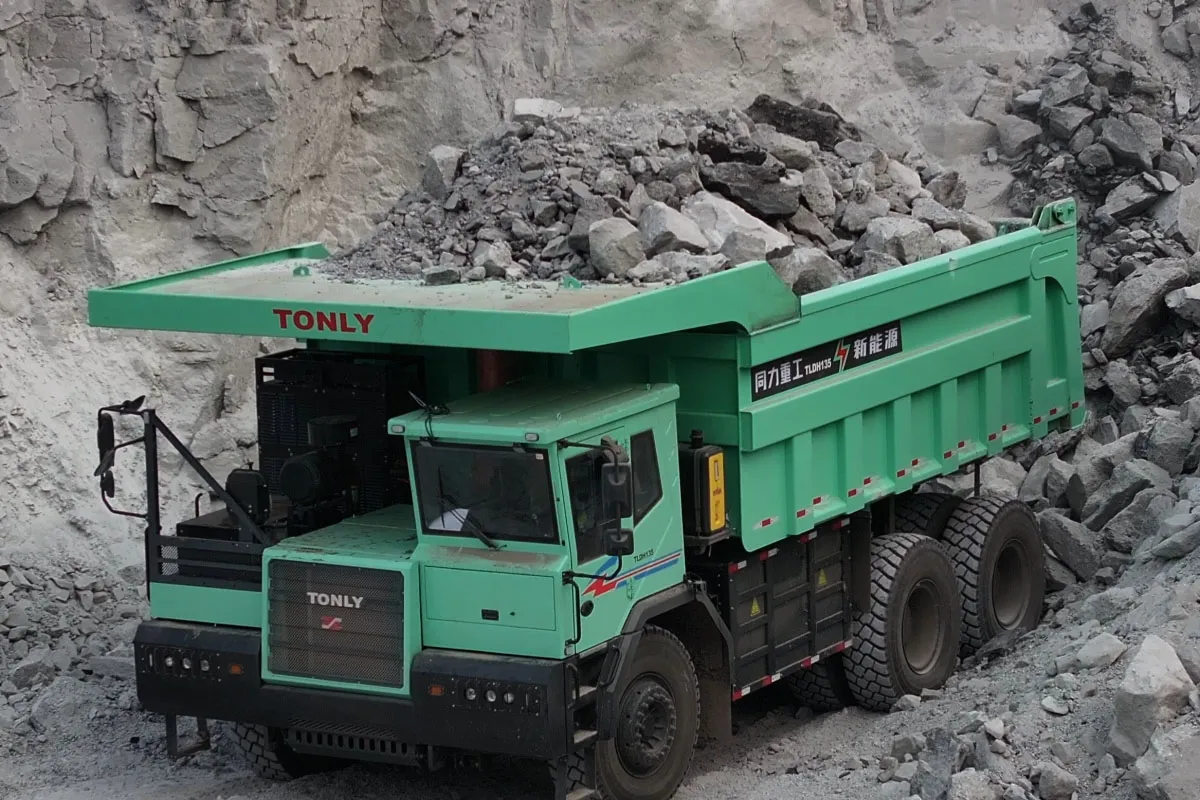

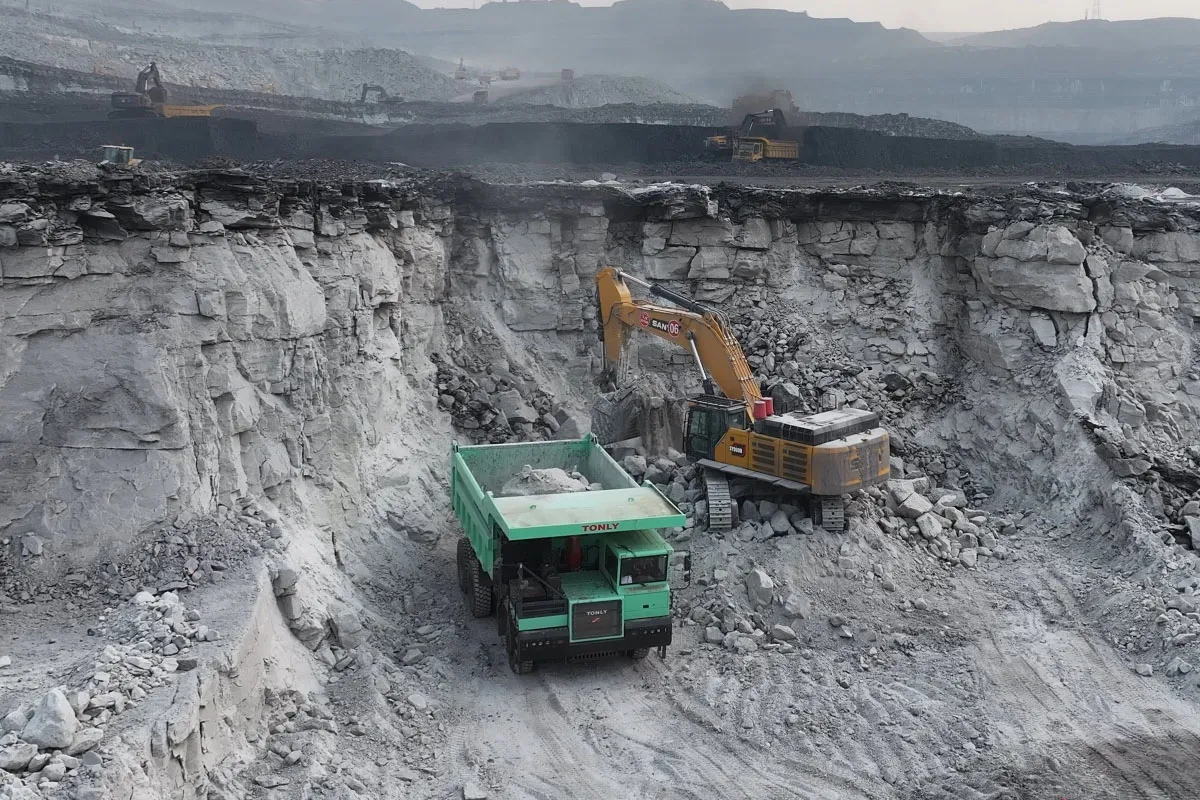

Heavy-duty uphill transportation in large open pit mines and quarries

Request a Quote

Specifications
Configurations
Cases

Specifications

Model	TLH105D (diesel-electric hybrid)	TLH135D (diesel-electric hybrid)	TLDH135D (diesel-electric hybrid)	TLH105N (natural gas-electric hybrid)	TLH105M (methanol-electric hybrid)	TLH135M (methanol-electric hybrid)
Kerb weight (t)	35	45	55	35	35	45
Rated payload (t)	70	90	90	70	70	90
Battery (kWh)	53	108/176	108/176	118	108	108/176
Drive power (kW)	500/800	500/800	620/800	525/800	450/600	560/800
Generator power (kW)	210	400		300
Engine power (HP)	560				353
Axle load (t)	25+40+40	30+50+50	32+53+53	25+40+40	25+40+40	30+50+50
Cab	4th generation left hand cab
Suspension system	Front hydropneumatic suspension/rear leaf spring suspension	Front hydropneumatic suspension/rear leaf spring suspension	Full hydropneumatic suspension	Front hydropneumatic suspension/rear leaf spring suspension
Steering system	Fully hydraulic steering + emergency steering
Tire	16.00R25	480/95R29	480/95R29	16.00R25	16.00R25	480/95R29
Dump body capacity (m³)	33	40	40	50
Max. speed (km/h)	40
Drive mode	6×4
Wire control system	Optional

Features

Our 70-90 ton hybrid electric off-road dump trucks can be equipped with a variety of fuel-powered range extenders (methanol, natural gas, diesel, and hydrogen fuel), multi-speed automatic transmissions, and high-rate charge and discharge power batteries, allowing them to deliver exceptional performance and efficiency.
With their engines and transmissions, our trucks can serve as a cost-effective alternative to the current mainstream products that primarily use “diesel engine + hydraulic automatic transmission” power combinations.
They help save over 40% in operation and maintenance costs, providing an ideal solution for your needs

Configurations

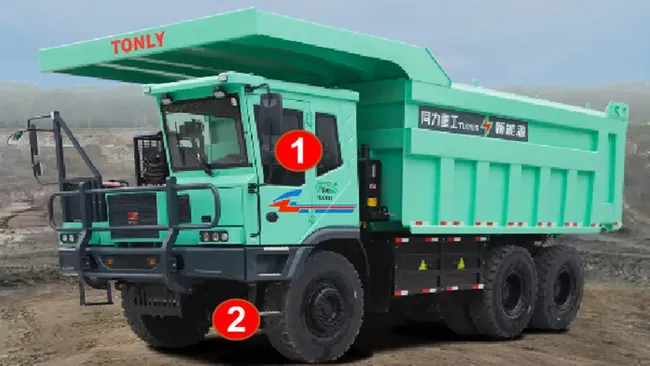

1 Wide-body offset cab

Featuring a rigid frame structure, the wide-body offset cab presents excellent resistance to rolling, falling and collision. The rear door is opened backwards, allowing the operator to escape the cab quickly in case of accidents. Also, the forward-tilted front windshield provides a better view and effectively prevents falling objects from smashing the glass and causing damage to the operator.

2 Fully hydraulic steering gear

The fully hydraulic steering gear can output a large steering torque, enabling flexible operation and high reliability.

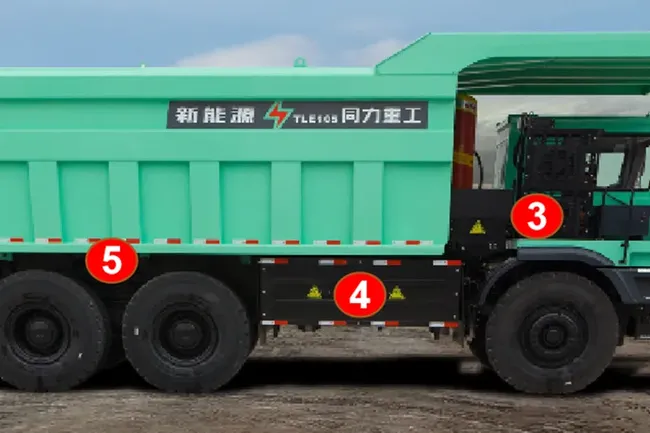

3 Electric drive assembly

The power drive system is composed of dual motor and automatic transmission, enabling fast power response, automatic shifting without power interruption, convenient operation and excellent ride comfort.

5 Bolted chassis frame

wide body vehicle is made of high-strength steel plate by multiple times of rolling, featuring high bearing capacity, strong impact resistance and long service life. It is adaptive excellently to working conditions, and can absorb and attenuate impact load to protect the bearing system.

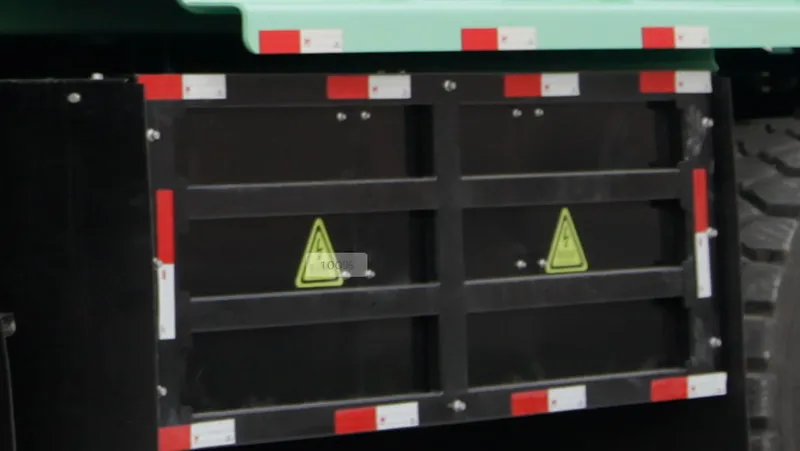

4 Power battery

The industry's most mature LFP power battery is safe and reliable in operation, with long cycle life.

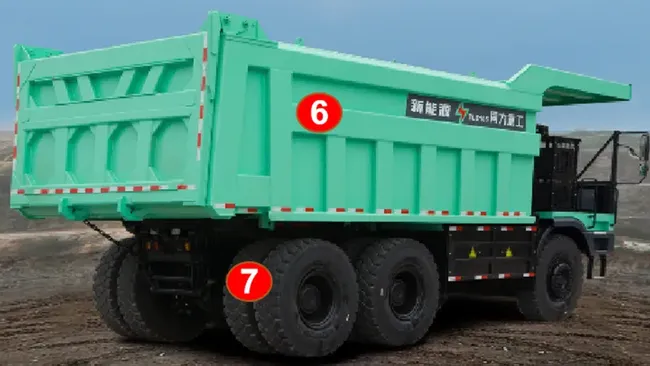

6 Rectangular dump body

The integrally framed dump body is made of high-strength and wear-resistant steel plates, with strong resistance to impact and deformation, good wear resistance and long service life.

7 OTR tire

OTR tire is equipped for different working conditions, with good adaptability to working conditions and long service life.

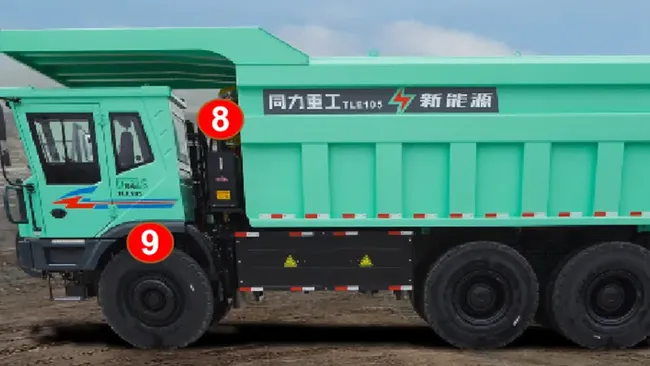

8 Lifting system

The mining-purpose hydraulic oil cylinder is high in lifting capacity, efficiency, safety and reliability.

9 Leaf spring suspension

The sliding-type front suspension with twin shock absorber has higher bearing capacity, good buffer performance, and high reliability.The leaf spring balance rear suspension is equipped with dual V-shaped track bar guiding mechanism, which has high bearing capacity and excellent stability.
