Off-Road Water Truck

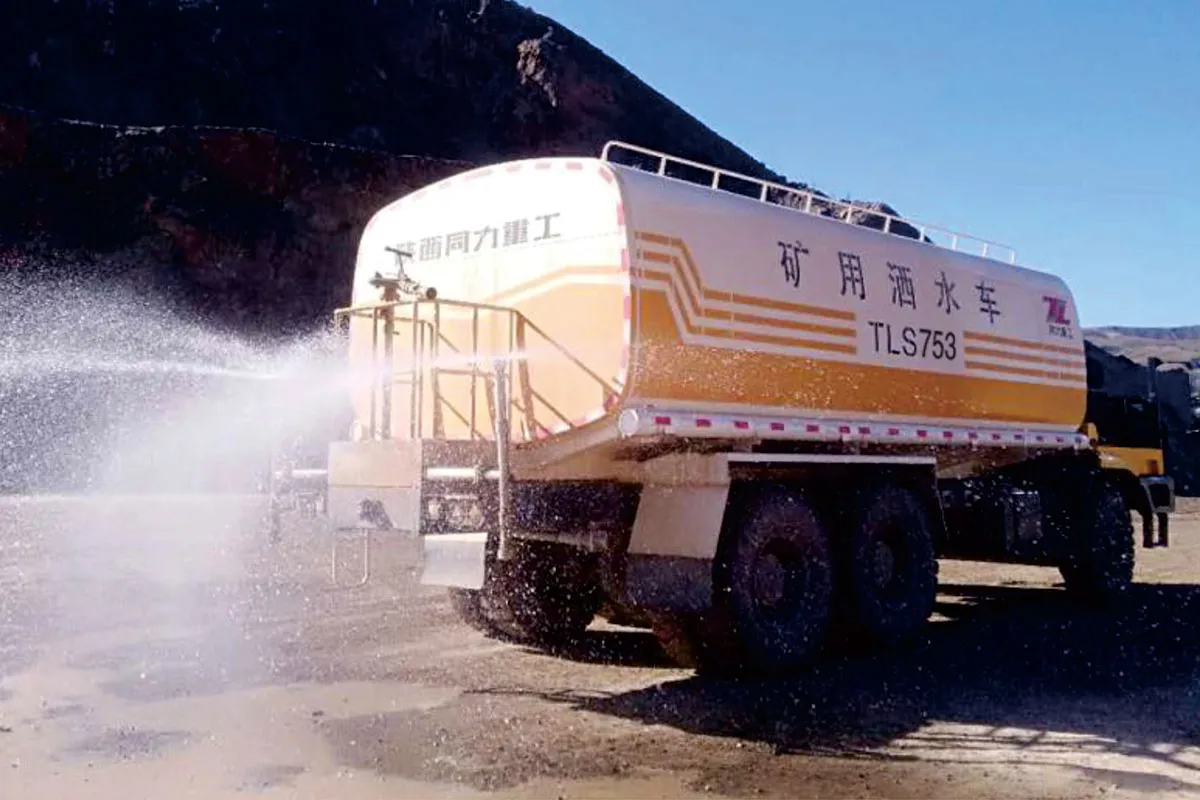

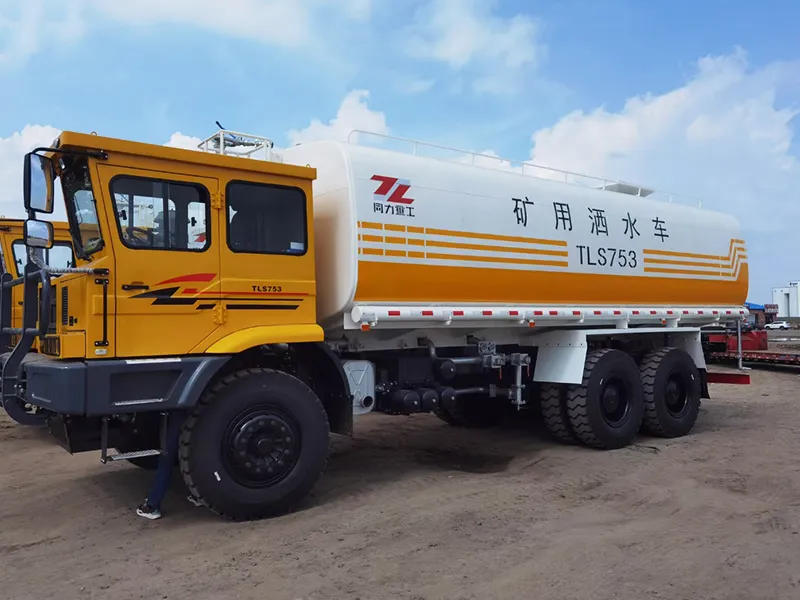

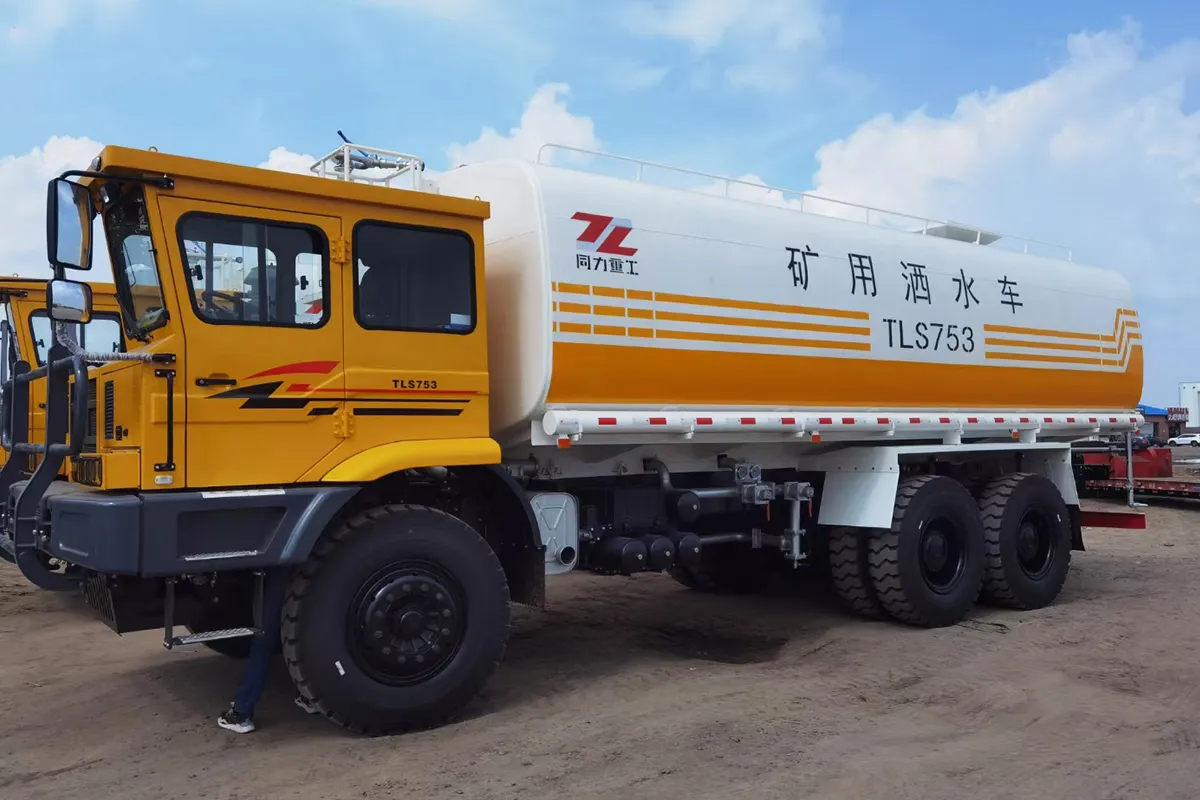

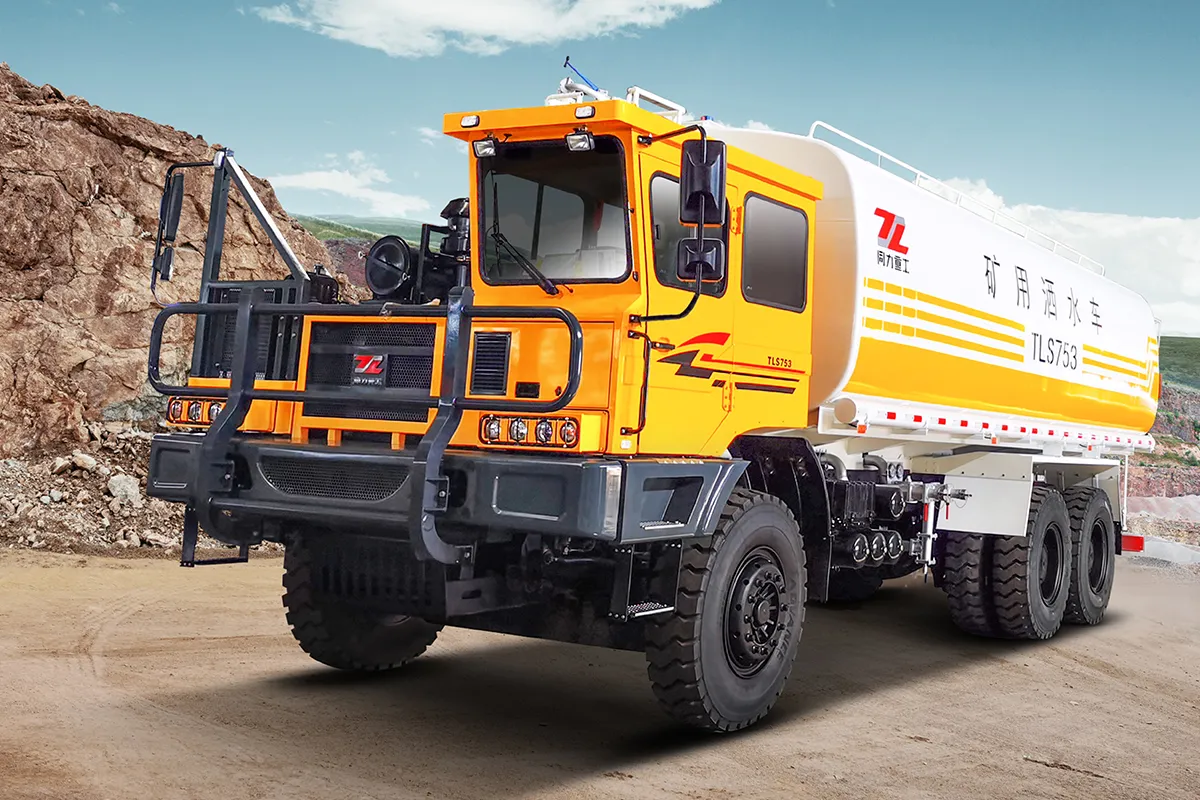

Water sprinkler truck for transporting water over difficult terrain

Key Parameters

Water tank capacity 40-50m³

Spraying width 10-18m

Mileage >5km

Specifications

Model	TLS753
Max. kerb weight (t)	76
Engine power (HP)	430
Water tank capacity (m³)	50
Dimensions (mm)	11295×3340×4050
Max. speed (km/h)	40
Tire	14.00-25
High pressure water jetting	Available
Spraying speed (km/h)	10
Mileage (km)	≮6.5
Spraying width (m)	10-18
High pressure water jetting range (m)	＞25

Features

Our off-road water trucks can cover an area of over 227,000 m², significantly more than highway water trucks with a maximum volume of 20m³ and covering area of 3,000m².
Equipped with a mature off-road wide-body chassis, our water trucks have been tested in harsh mining environments, greatly surpassing highway water trucks in adaptability.
The water tanks of the water sprinkler truck meet the requirements of different mining water qualities, presenting strong adaptability and long service life.
With an advanced chassis and highly universal accessories, our trucks ensure convenient service and low maintenance costs.
We offer flexible options for water spraying devices, featuring:
- Basic functions: road watering and dust suppression.
- Firefighting: a 25-meter range water cannon for emergent firefighting.
- Water suction and pumping: a pump for water suction to store water in the tank for transport and production use.
