Stock Code
834599
-

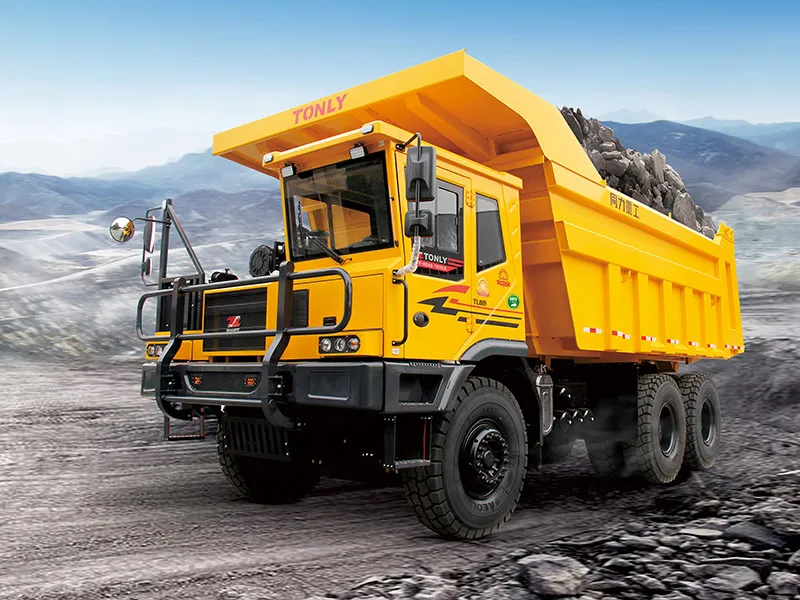

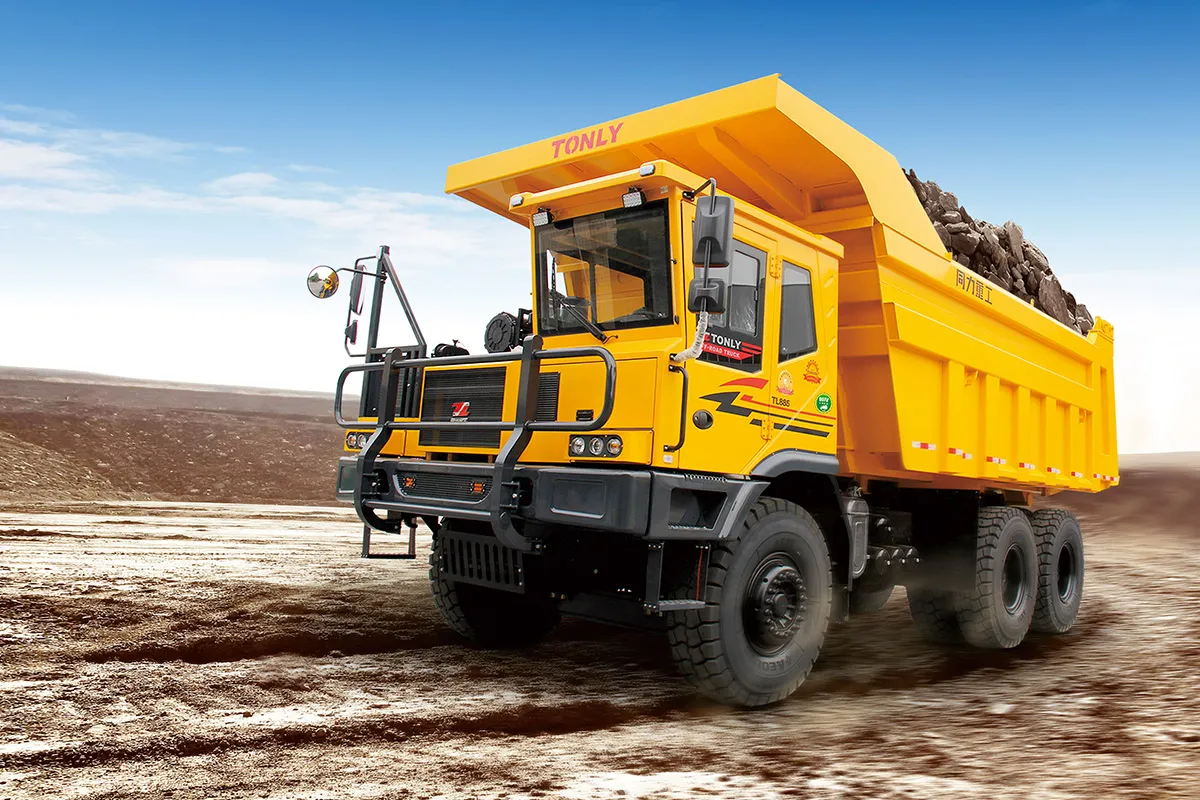

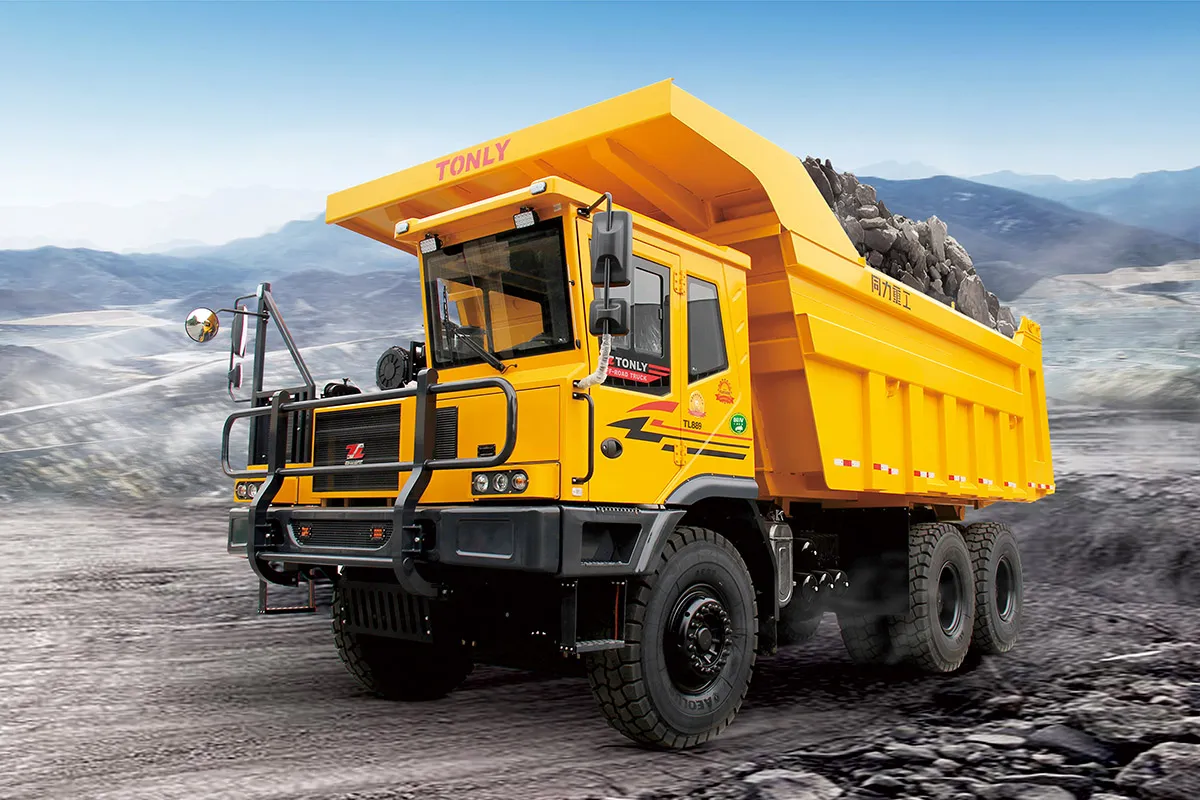

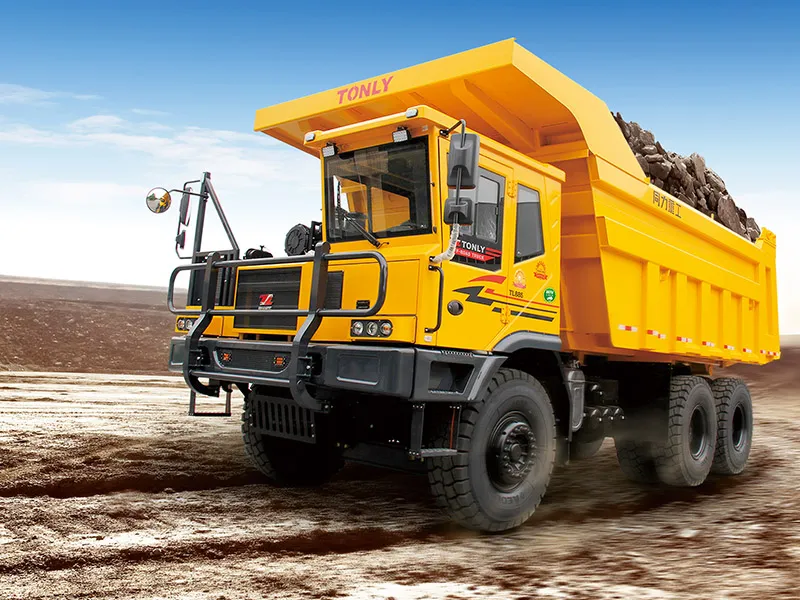

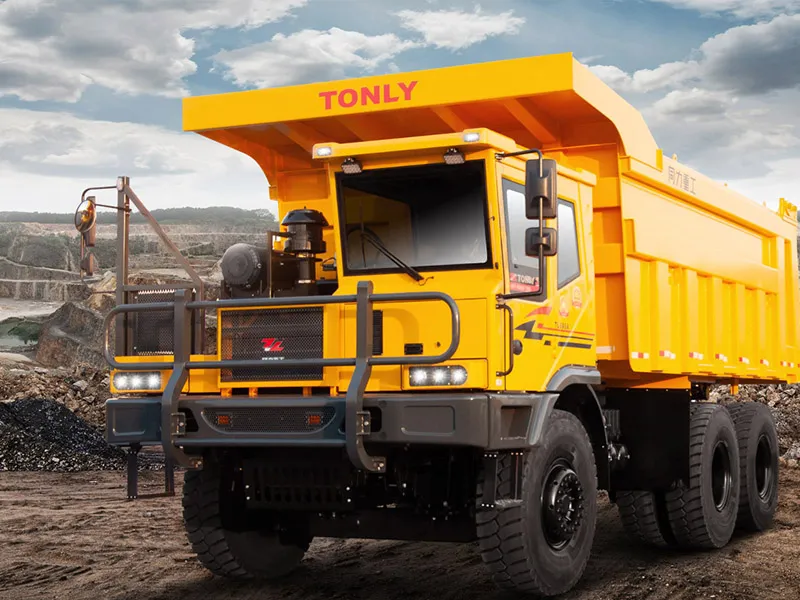

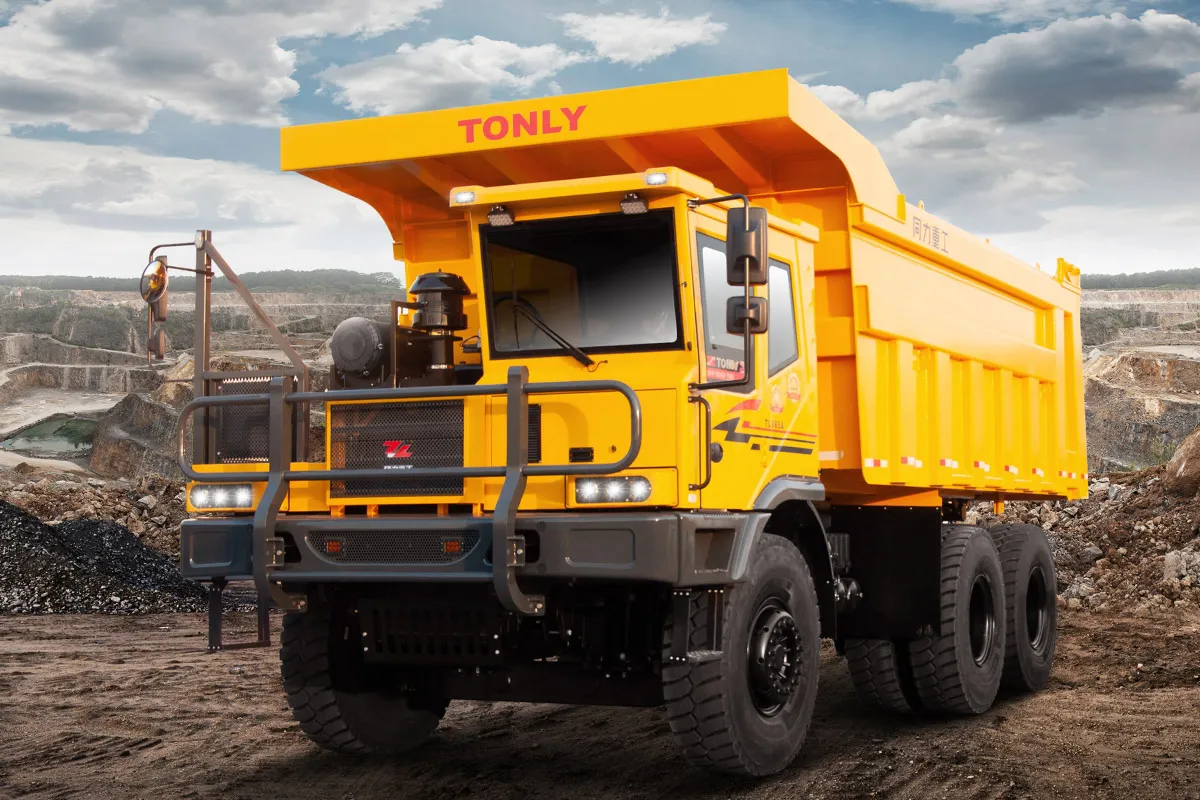

70 Ton
Diesel Off-Road Dump Truck
Rigid haul truck with 4WD 8-speed manual transmission
Key Parameters
-
Engine power 530HP
-
Rated payload 70t
-
Dump body capacity 36-65m³
Applications
heavy-duty transportation in mining
Specifications
| Model | TL885MR | |||
| Kerb weight (t) | 35 | |||
| Rated payload (t) | 70 | |||
| Engine power (HP) | 530 | |||
| Transmission | 8-speed manual transmission | |||
| Axle load (t) | 25+40+40 | |||
| Cab | Single-sided rigid cab | Single-sided rigid cab (right hand drive) | Single-sided rigid cab | Single-sided rigid cab (right hand drive) |
| Suspension system | Leaf spring suspension | |||
| Steering system | Fully hydraulic steering | |||
| Tire | 16.00-25 | |||
| Dump body capacity (m³) | 36 | 65 | ||
| Max. speed (km/h) | 40 | |||
| Drive mode | 6×4 | |||
Features
- Our 70-ton diesel off-road dump trucks have a rated payload of 70-80 tons .
- Equipped with high-power engines and reinforced mining-specific transmissions, the trucks deliver high torque and low noise.
- With an innovative flexible structure frame, our trucks can effectively absorb and attenuate impact, significantly reducing chassis failure.
- Thanks to the newly designed axles, our off-road dump trucks have greater load-bearing and braking capabilities.
- We design a unique collision prevention system with anti-collision beams, bumpers, and cross beams, enhancing the trucks’ safety and protection performance.
- Using a fully hydraulic steering system, our trucks enable light, reliable, and safe steering.
- The off-road dump trucks feature a newly designed cab with larger interior space, upgraded exterior and interior, and enhanced driving and riding comfort.
Configurations
Wide-body offset cab
Rigid frame structure is featured with excellent resistance to rolling, falling and collision; the rear door is opened backwards, allowing the operator to escape the cab quickly in case of accidents; the front windshield is forward-tilted to provide a better view and effectively prevent falling objects from smashing the glass and causing damage to the operator.
Fully hydraulic steering gear
The fully hydraulic steering gear can output a large steering torque, with easy operation and high reliability.
Engine
Non-road mining engine is professionally adjusted to adapt to off-road conditions, with strong power, low fuel consumption and high reliability.

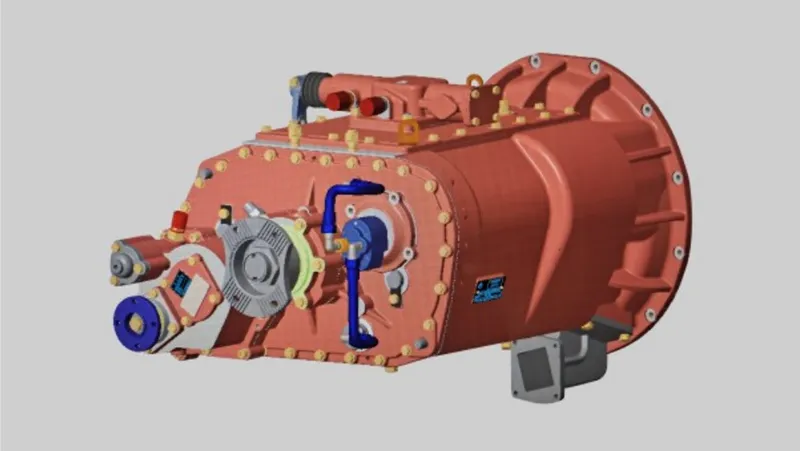

Manual transmission
The mining transmission, with single box and dual intermediate shaft, jointly developed by Tonly and FAST, is equipped with a forced lubrication device, presenting strong torque transmission capacity and high reliability. The optional integrated hydraulic retarder can reduce the consumption of brake shoes and improve the safety of the vehicle.
Bolted chassis frame
The bolted frame for wide body vehicle is made of high-strength steel plate by multiple times of rolling, featuring high bearing capacity, strong impact resistance and long service life.
Rectangular dump body
The integrally framed dump body is made of high-strength and wear-resistant steel plates, with strong resistance to impact and deformation, good wear resistance and long service life.

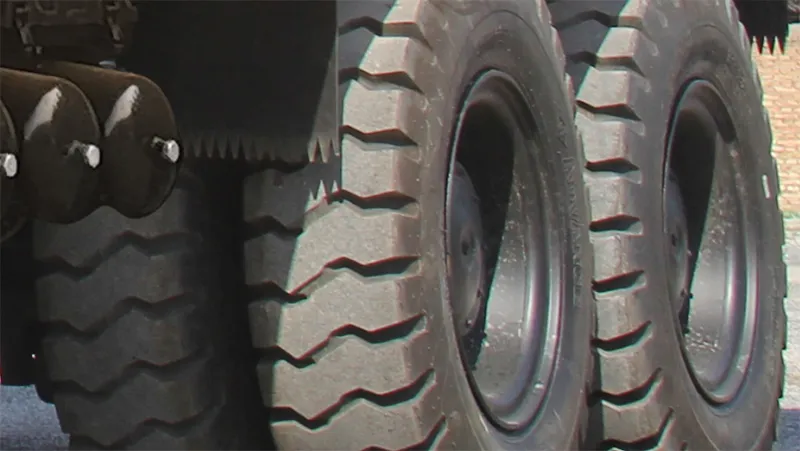

OTR tire
OTR tire is specifically used for different working conditions, with good adaptability, flexibility, and long service life.
Lifting system
The mining-purpose hydraulic oil cylinder is high in lifting capacity, efficiency, safety and reliability.
Leaf spring suspension
The sliding-type front suspension with twin shock absorber demonstrates higher bearing capacity, good buffer performance, and high reliability. The leaf spring balance rear suspension is equipped with dual V-shaped track bar guiding mechanism, delivering high bearing capacity and excellent stability.

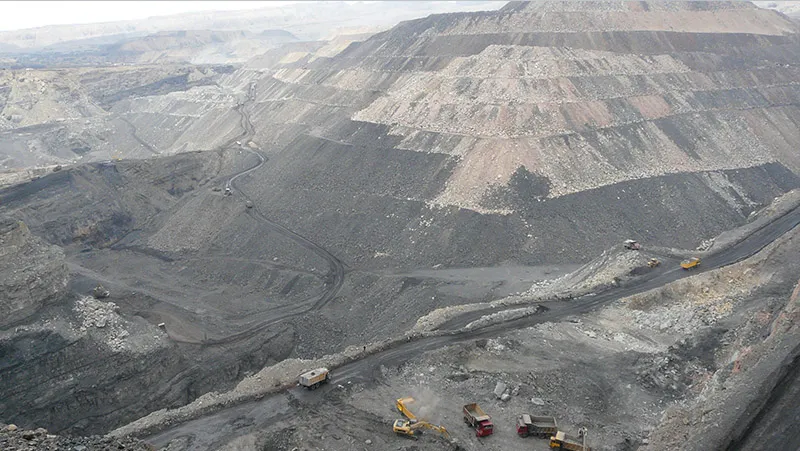

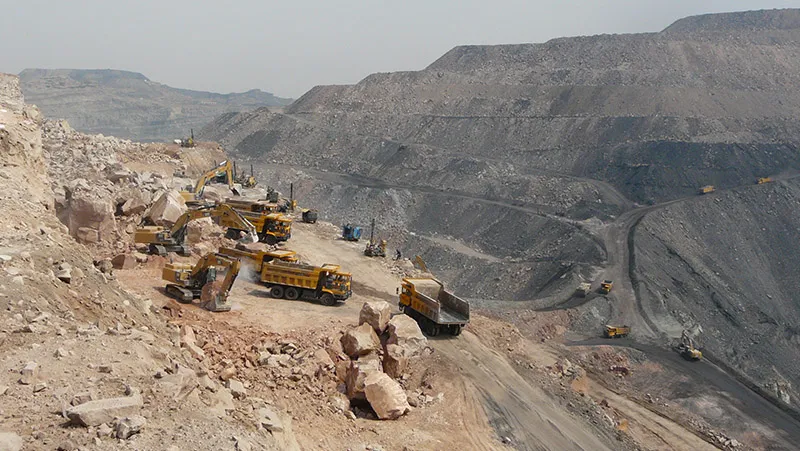

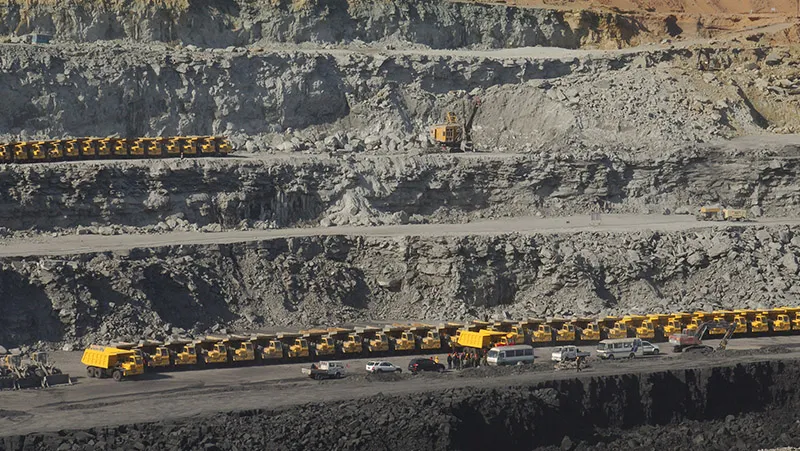

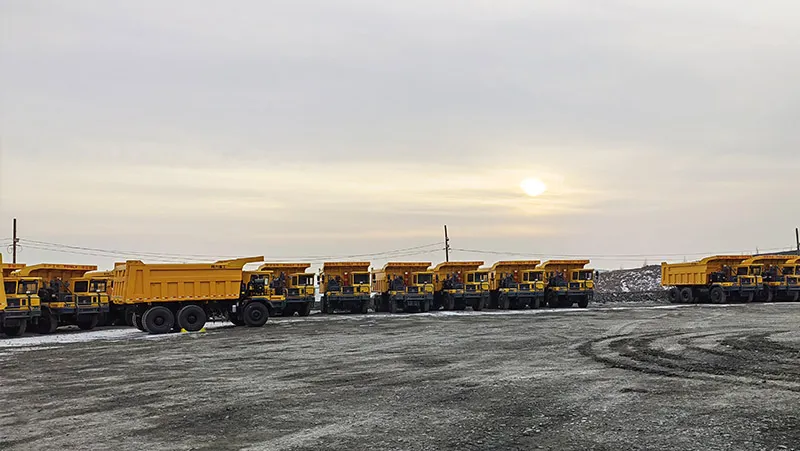

Related Cases
-
Ansteel Group's Gongchangling Iron Ore Mine
- Location: Gongchangling, Liaoyang
- Annual extraction volume: 40 million tons.
- Site conditions: heavy-load uphill transportation
- Transportation distance: 7 km
- Recommendations: TL885A, UQ-25(B)
-
Guangna Coal Group’s Open-Pit Coal Mine
- Location: Wuhai City and Otog Banner, Ordos City, Inner Mongolia
- Annual Extraction: 9 coal mines, with two mines having an annual capacity of 600,000 tons each, six mines at 1.2 million tons each, and one mine at 1.8 million tons
- Site conditions: heavy-load uphill and downhill transportation
- Transportation distance: 2-3 km (Guanghui Coal Mine has a single trip distance of 6 km)
- Recommendations: TL885A, TL883, TL885K
-
Baiyinhua Open-Pit Coal Mine (No.3 Open Pit Mine) in Inner Mongolia
- Location: Xilin Gol League, Inner Mongolia
- Annual extraction: 20 million tons
- Site conditions: heavy-load uphill transportation, with distances ranging from 3.5 to 8 km
- Environmental factors: minimum temperature of -35°C
- Recommendations: TL875, TL875M, TL885, TL891
-
Shenhua Group's Wujiata Open-Pit Mine
- Location: Ordos, Inner Mongolia
- Annual extraction: 30 million tons
- Site conditions: heavy-load uphill transportation
- Recommendations: TL885
