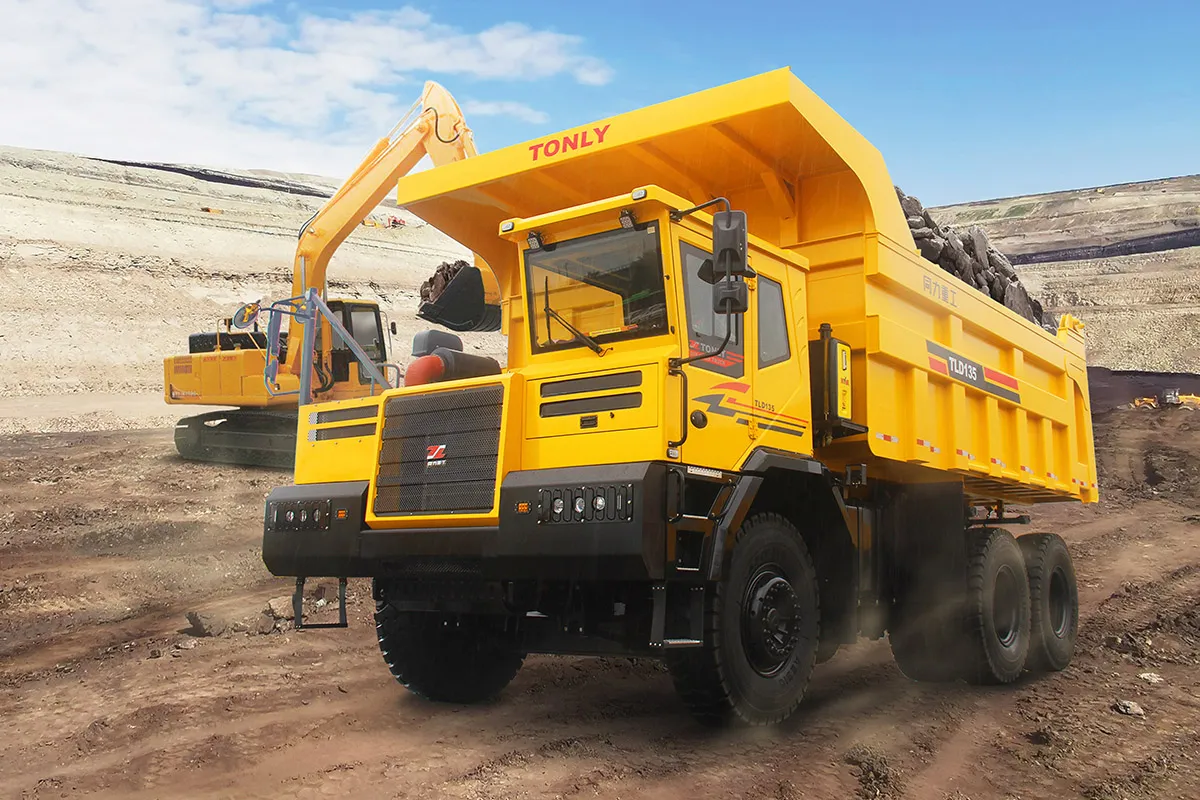

91 Ton | Diesel Off-Road Dump Truck

Diesel Off-Road Dump Truck

Rigid haul truck with 4WD manual transmission

Key Parameters

Engine power 770HP

Rated payload 91t

Dump body capacity 50m³

Applications

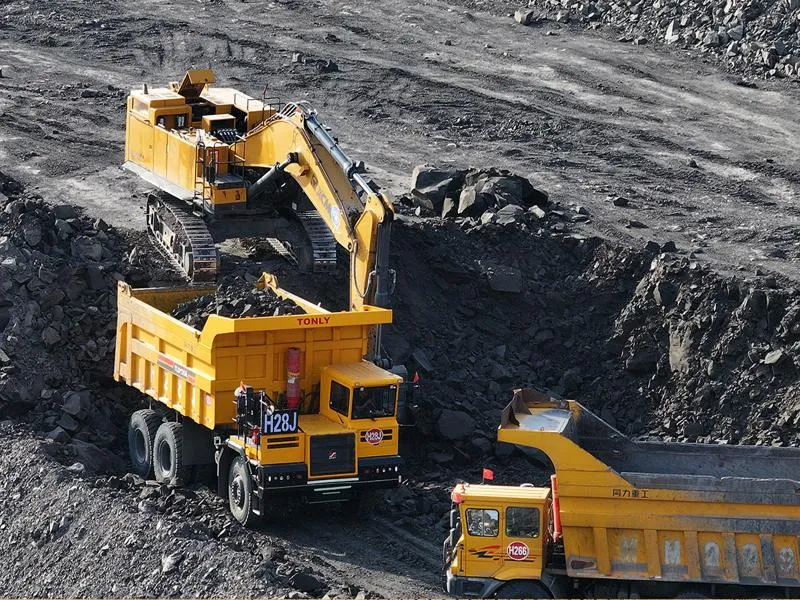

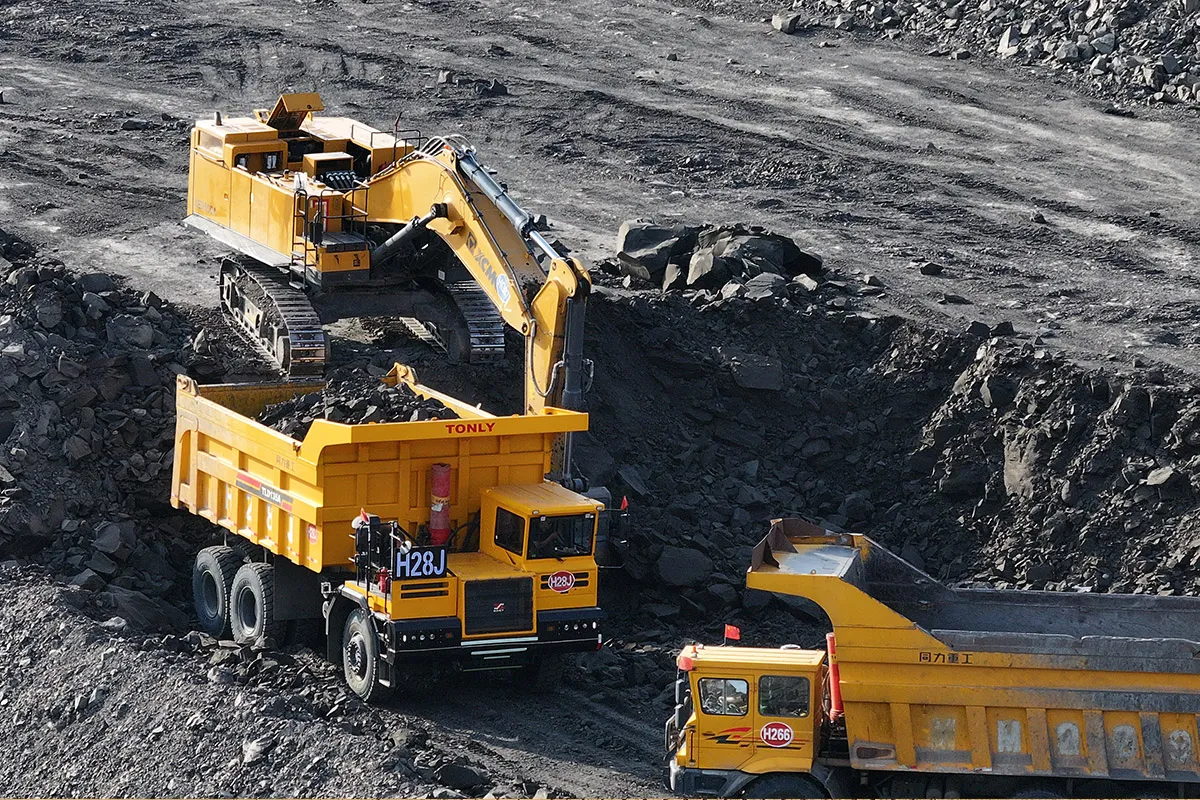

Transportation in large and medium-sized open-pit mines

Specifications

Model	TLD135
Kerb weight (t)	45
Rated payload (t)	91
Engine power (HP)	770
Transmission	Manual transmission
Axle load (t)	32+53+53
Cab	Single-sided rigid cab
Suspension system	Front/rear hydropneumatic suspension
Steering system	Fully hydraulic steering
Tire	480/95R29
Dump body capacity (m³)	50
Max. speed (km/h)	40
Drive mode	6×4

Features

Our 91-ton diesel off-road dump trucks feature a premium power transmission system, equipped with a high-power engine, a mining-specific high-torque transmission, and a high-load axle, offering stronger power, higher reliability, and better fuel economy.
With a large cross-section rigid frame, safety factor exceeding three times the standard, and frame strength increased by over 30%, our trucks offer high load capacity, strong impact resistance, and long service life.
Powered by large-diameter, long-stroke hydraulic oil cylinders, and optimized matching and structural layout, our trucks present high reliability and an improved vibration isolation rate of over 35%.
